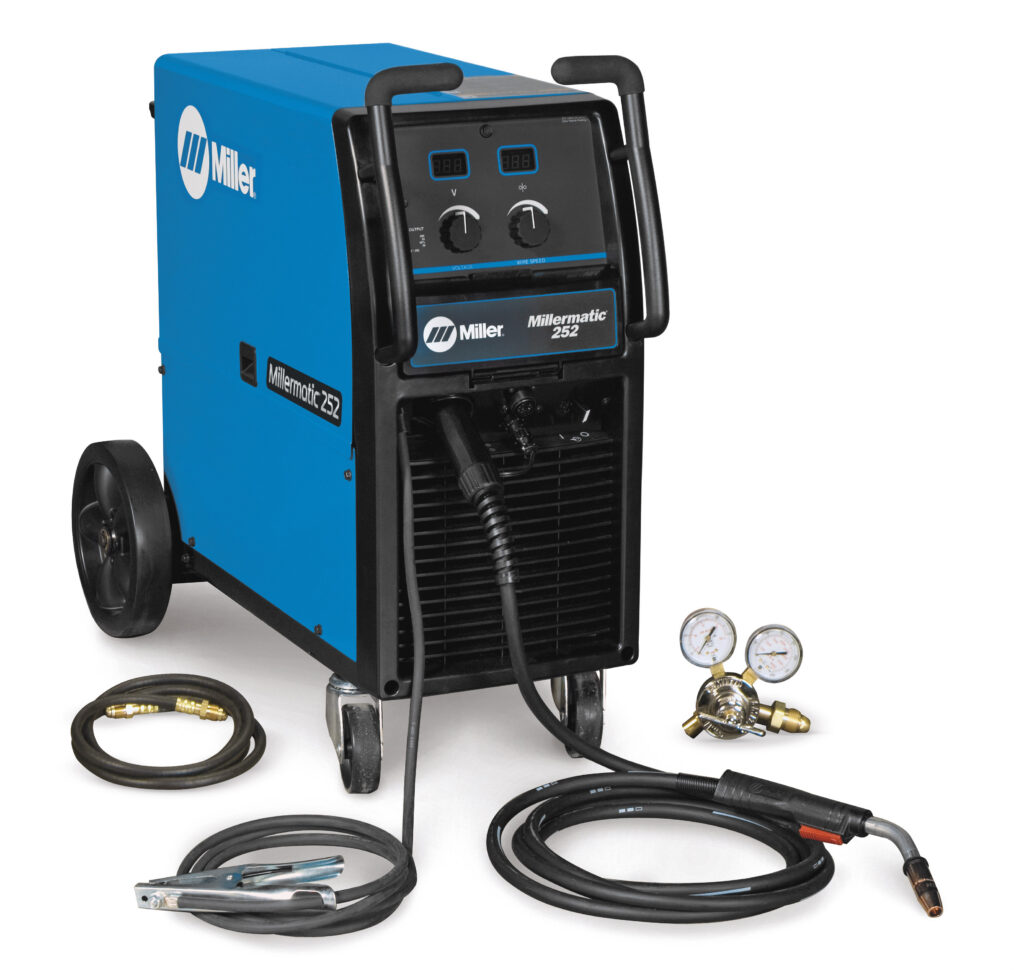

A time-tested, durable welder with a classic interface designed for simplicity. Easy usage and innovative features make the Millermatic 252 perfect for fabrication, manufacturing, and farm projects.

• Processes

  Flux Cored (FCAW)

  MIG (GMAW)

  General Specifications

  Title	Millermatic® 252 MIG Welder – 200(208)/230V
  Applications	Automotive Welding Welding Education and Training Welding Projects
  Industries	Racing, Customizing & Restoring Farm & Ranch Manufacturing
  Amperage	30 A – 300 A
  Material Thickness	Aluminum 14 ga. (1.9 mm) – 3/8 in. (9.5 mm) Mild Steel 22 ga. (0.6 mm) – 1/2 in. (12.7 mm)
  Weldable Metals	Aluminum Stainless Steel Steel
  Current Type	DC
  Rated Output	200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle
  Max Open Circuit Voltage	38 VDC
  Wire Feed Speed	1.3 m/min – 17.8 m/min 50 IPM – 700 IPM
  Wire Diameter	Stainless 0.023 in. – 0.045 in. Stainless 0.6 mm. – 1.2 mm. Solid Steel 0.6 mm. – 1.2 mm. Solid Steel 0.023 in. – 0.045 in. Flux Cored 0.03 in. – 0.045 in. Flux Cored 0.8 mm. – 1.2 mm.
  Spool Size	12 in (305 mm)
  Portability	Running Gear / Cart (Standard)
  Weld Output	CV
  Input Voltage	208 V 220/230/240 V
  Input Phase	1-Phase
  Input Hz	60 Hz
  Input Amperage	42 A
  Net Width	19 in
  Net Height	30 in
  Net Length	40 in
  Net Weight	205 lbs
