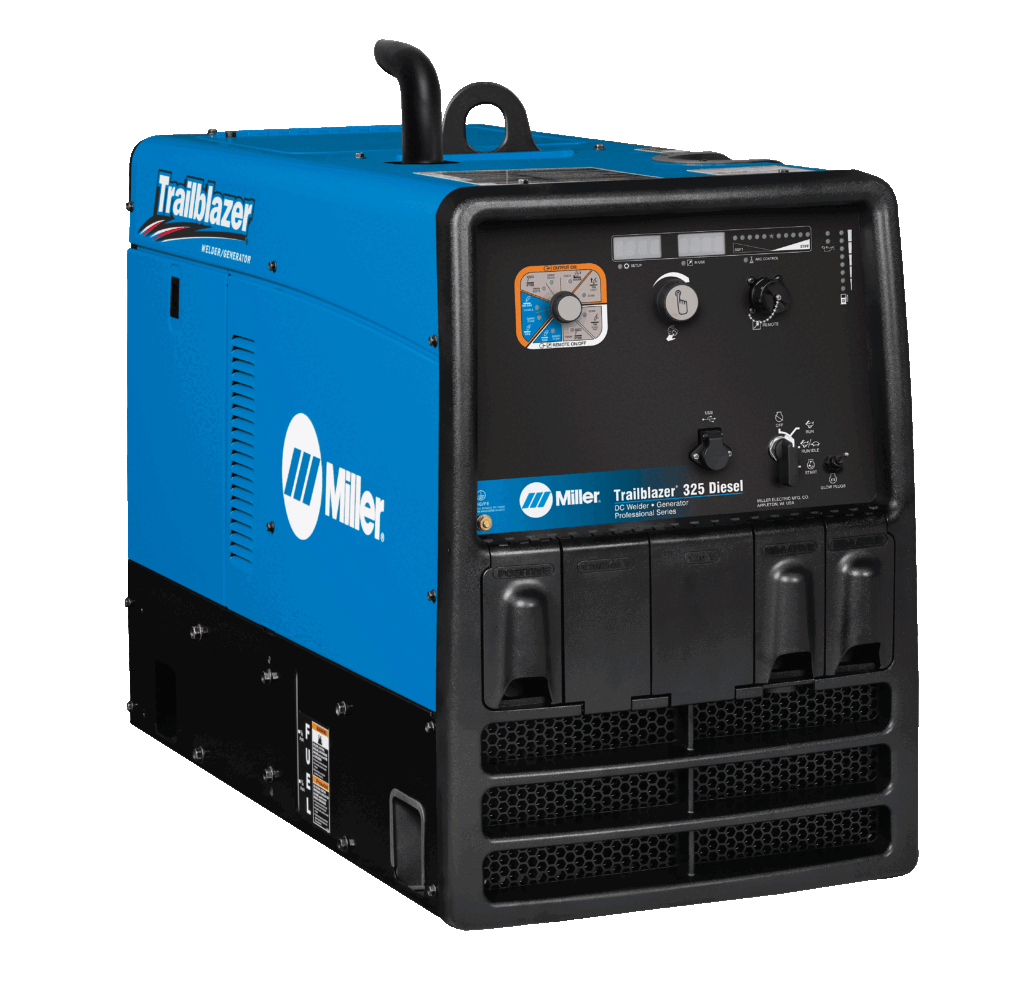

The Trailblazer exclusive technologies — Auto-Speed and optional Excel power — deliver superior runtimes, increase fuel efficiency, and improve welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

Specifications:

• Processes

  Air Carbon Arc Cutting and Gouging (CAC-A)

  Stick (SMAW)

  TIG DC (GTAW-DC)

  Pulsed TIG (GTAW-P)

  Plasma (PAC)

  Flux Cored (FCAW)

  MIG (GMAW)

  Technologies

  ArcReach

  Dynamic DIG

  GFCI

  General Specifications

  Title	Trailblazer® 330 (Rehlko)
  Applications	Aluminum Welding Fabrication Mobile Fabrication & MRO Structural Welding
  Industries	Construction & Fabrication Heavy Equipment
  Amperage	20 A – 330 A
  Weldable Metals	Aluminum Stainless Steel Steel
  Rated Carbon Diameter	1/4 in (6.4 mm)
  Current Type	DC
  Max Open Circuit Voltage	107 VDC
  Portability	Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional)
  Engine Brand	Rehlko
  Engine Idle Speed	2400 RPM
  Engine Weld Speed	Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 rpm to match weld output
  Fuel Tank Size	11 Gallon
  Fuel Type	Gasoline
  Horsepower	23.5 hp
  Weld Output	CC / CV
  Rated Output	CC/DC Stick/TIG 330 A at 30 V, 100% duty cycle, CV/DC MIG/FCAW 325 A at 30.25 V, 100% duty cycle
  Single Phase Auxiliary Continuous Power	10500 W
  Single Phase Auxiliary Peak Power	12000 W
  Sound Rating	65 dB @ idle and 73.5 dB @ max weld
  Net Width	20.13 in
  Net Height	26.5 in
  Net Length	37.06 in
  Net Weight	400 lbs
